BSD223P

MOSFET 2P-CH 20V 0.39A SOT363

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSD223P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSD223P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
X1s	BSD223P		SOT-363	6	Dual P-channel OptiMOS-P Small-Signal-Transistor

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount

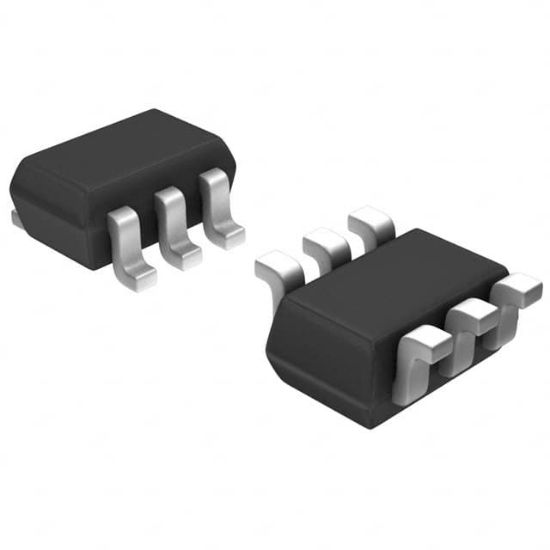

Supplier Device Package	PG-SOT363-6
Current - Continuous Drain (Id) @ 25°C	390mA
Rds On (Max) @ Id, Vgs	1.2Ohm @ 390mA, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	250mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1.2V @ 1.5μA
Gate Charge (Qg) (Max) @ Vgs	0.62nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	56pF @ 15V
RoHS	RoHS
