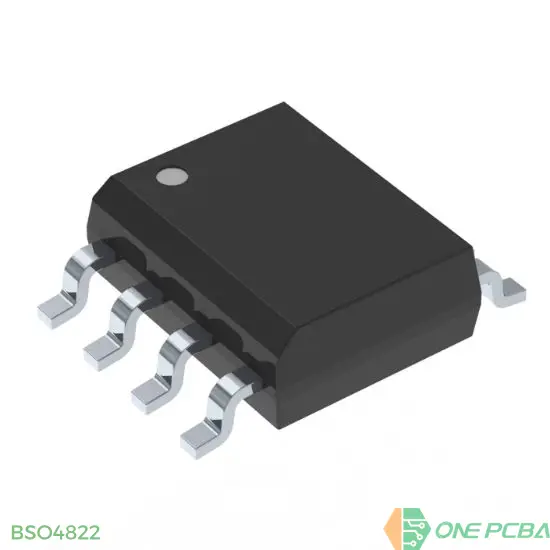

BSO4822

MOSFET N-CH 30V 12.7A 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSO4822

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSO4822 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
4822	BSO4822		SO8	0	OptiMOS-N Small-Signal-Transistor

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12.7A (Ta)
Rds On (Max) @ Id, Vgs	10mOhm @ 12.7A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT)
Power Dissipation (Max)	2.5W (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 55μA
Gate Charge (Qg) (Max) @ Vgs	26.2 nC @ 5 V
Supplier Device Package	PG-DSO-8
Input Capacitance (Ciss) (Max) @ Vds	1640 pF @ 25 V
RoHS	RoHS
