BSS123L-6359704

SMALL SIGNAL FIELD-EFFECT TRANSI

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: BSS123L-6359704

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSS123L-6359704 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	170mA (Ta)
Rds On (Max) @ Id, Vgs	6Ohm @ 170mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Bulk
Power Dissipation (Max)	360mW (Ta)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.5 nC @ 10 V

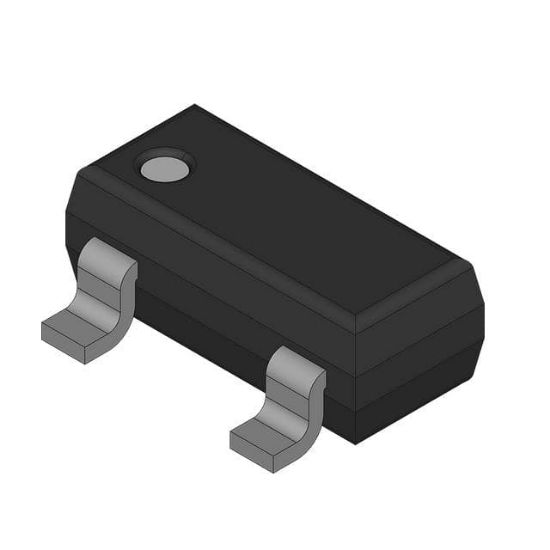

Supplier Device Package	SOT-23-3
Input Capacitance (Ciss) (Max) @ Vds	21.5 pF @ 25 V
RoHS	RoHS
