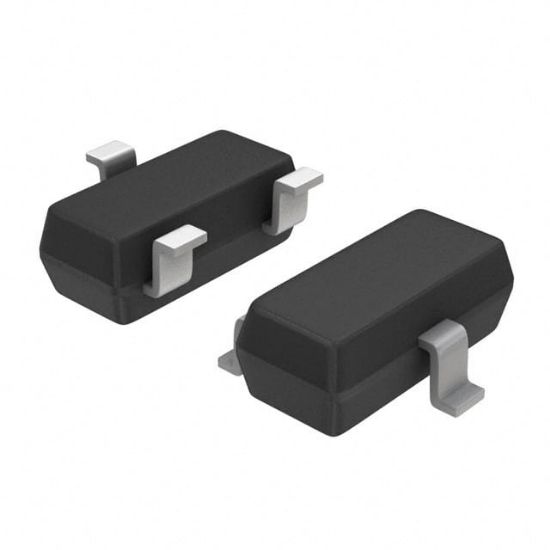

BSS138LT1

MOSFET N-CH 50V 200MA SOT-23

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BSS138LT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSS138LT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
J1_	BSS138LT1	ON	SOT23	3	N-ch enh TMOS fet
J1x	BSS138LT1		SOT23	0	Small Signal MOSFET 50V 200mA 3.5 Ohm Single N-Channel Logic Level
J1	BSS138LT1	Ons	SOT-23	3	SIPMOS, LogL,50V, 200mA, 225mW, 3.5(220mA), 20/20ns

Operating Temperature	-
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Rds On (Max) @ Id, Vgs	3.5Ohm @ 200mA, 5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	-
Package	Cut Tape (CT)
Power Dissipation (Max)	-
Drain to Source Voltage (Vdss)	50 V
Vgs (Max)	-
Vgs(th) (Max) @ Id	1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	SOT-23-3 (TO-236)
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
RoHS	RoHS
