BSS84-7

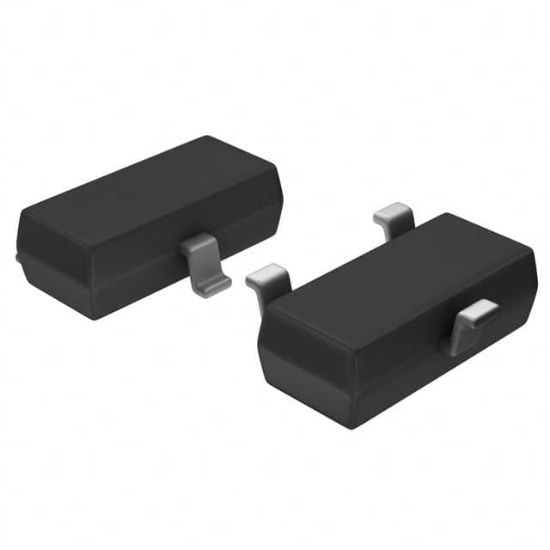

MOSFET P-CH 50V 130MA SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: BSS84-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSS84-7 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K84	BSS84-7	DIODES	SOT-23/SC-59	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	130mA (Ta)
Rds On (Max) @ Id, Vgs	10Ohm @ 100mA, 5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V
Package	Tape & Reel (TR),Cut Tape (CT)
Power Dissipation (Max)	300mW (Ta)
Drain to Source Voltage (Vdss)	50 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	SOT-23-3
Input Capacitance (Ciss) (Max) @ Vds	45 pF @ 25 V
RoHS	RoHS
