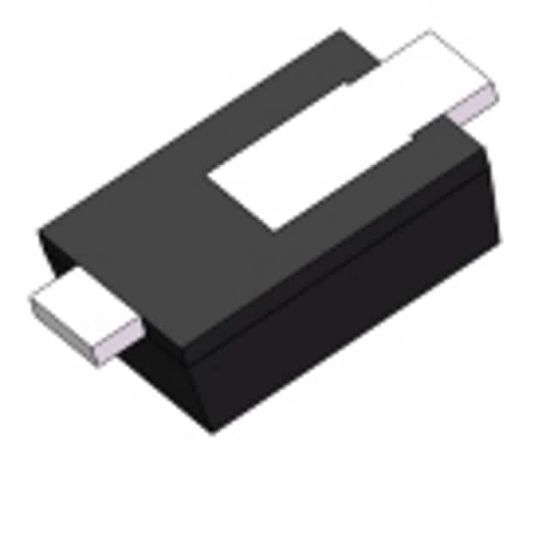

BZD27C20P

DIODE ZENER 20V 800MW SOD-123F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rectron USA

SKU: BZD27C20P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BZD27C20P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K8	BZD27C20P	Lge	SOD123FL	2	Vbr=18.8V, Vcl=28.4V, 5.3A, 150W(1ms)
20P	BZD27C20P	Pjt	SOD-123FL	2	19.0..21.0V, Zzt=15Ω, Izt=25mA, 800mW
E8	BZD27C20P		DO-219AB	2	Zener Diod with Surge Current Specification

Impedance (Max) (Zzt)	6 Ohms
Power - Max	800 mW
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-
RoHS	RoHS
Current - Reverse Leakage @ Vr	1 μA @ 15 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-123FL
Package	Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)	20 V
Tolerance	±6%
