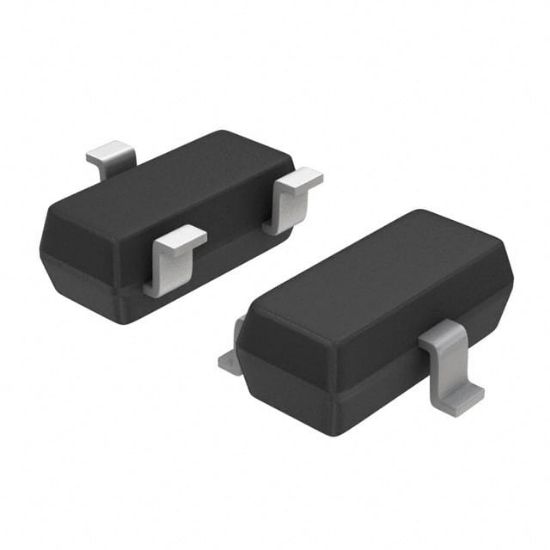

BZX84C15LT1

DIODE ZENER 15V 225MW SOT-23

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: BZX84C15LT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BZX84C15LT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Y4	BZX84C15LT1		SOT-23	3	15V 225 mW Zener Voltage Regulator Diode
Y4x	BZX84C15LT1		SOT-23	0	225 mW 15 V 5% Zener Diode Voltage Regulator

Impedance (Max) (Zzt)	30 Ohms
Power - Max	225 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	50 nA @ 10.5 V
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package	Bulk
Voltage - Zener (Nom) (Vz)	15 V
Tolerance	±6%
