CD4067BPWR

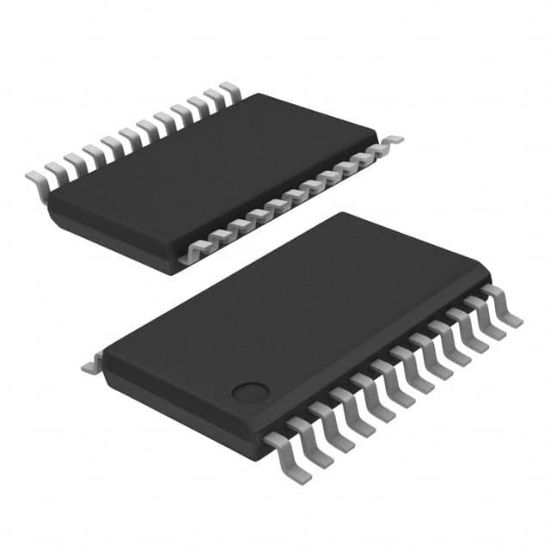

IC MUX/DEMUX 1X16 24TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CD4067BPWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CD4067BPWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CM067B	CD4067BPWR	TI	24	0	CMOS Single 16-Channel Analog Multiplexer/Demultiplexer

Operating Temperature	-55°C ~ 125°C (TA)
Channel Capacitance (CS(off), CD(off))	0.2pF, 55pF
On-State Resistance (Max)	240Ohm
Mounting Type	Surface Mount
Supplier Device Package	24-TSSOP
Switch Circuit	-
Voltage - Supply, Dual (V±)	-
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Charge Injection	-
Switch Time (Ton, Toff) (Max)	-
Voltage - Supply, Single (V+)	3V ~ 18V
Crosstalk	-
Multiplexer/Demultiplexer Circuit	16:1
Channel-to-Channel Matching (ΔRon)	5Ohm
-3db Bandwidth	14MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	100nA
