CD74HCT4067ME4

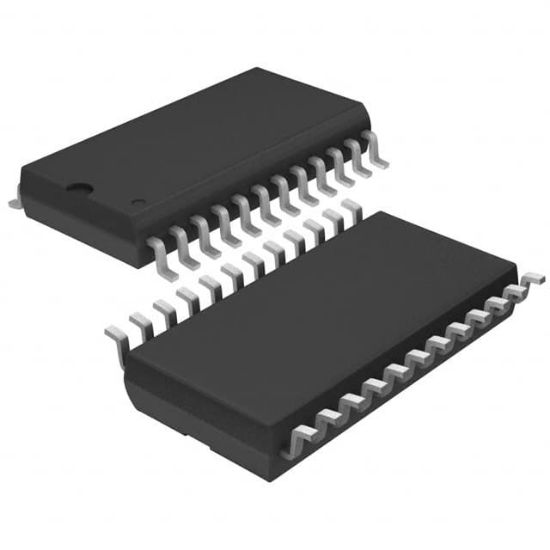

IC MUX/DEMUX 1X16 24SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CD74HCT4067ME4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CD74HCT4067ME4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
HCT4067M	CD74HCT4067ME4	TI	24	0	High Speed CMOS 16-Channel Analog Multiplexer/Demultiplexer with TTL Inputs

Operating Temperature	-55°C ~ 125°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF, 50pF
On-State Resistance (Max)	180Ohm
Mounting Type	Surface Mount
Supplier Device Package	24-SOIC
Switch Circuit	-
Voltage - Supply, Dual (V±)	-
Number of Circuits	1
Package	Tube
Charge Injection	-
Switch Time (Ton, Toff) (Max)	60ns, 55ns
Voltage - Supply, Single (V+)	4.5V ~ 5.5V
Crosstalk	-
Multiplexer/Demultiplexer Circuit	16:1
Channel-to-Channel Matching (ΔRon)	10Ohm
-3db Bandwidth	89MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	-
