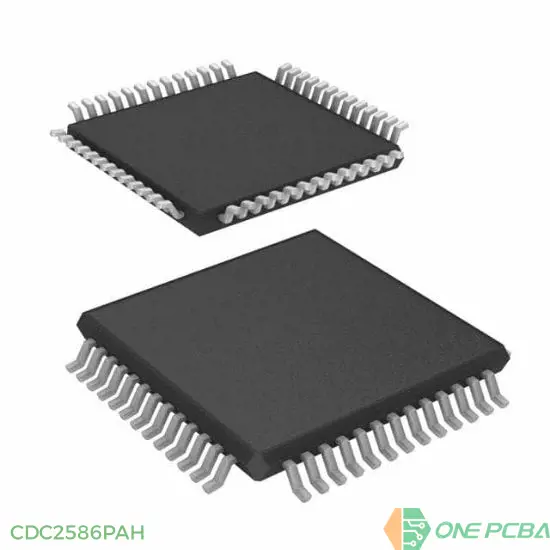

CDC2586PAH

IC 3.3V PLL CLK-DRVR 52-TQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: CDC2586PAH

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CDC2586PAH Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CDC2586	CDC2586PAH	TI	52	0	3.3V PLL CLock Driver with 1/2x, 1x and 2x Frequency Options

Voltage - Supply	3V ~ 3.6V
Input	LVTTL
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 70°C
Supplier Device Package	52-TQFP (10x10)
Number of Circuits	1
Output	LVTTL
Package	Tray,Tray
Ratio - Input:Output	1:12
Differential - Input:Output	No/No
Type	PLL Clock Driver
Divider/Multiplier	Yes/Yes
Frequency - Max	100MHz
PLL	Yes with Bypass
RoHS	RoHS
