CDCF5801DBQG4

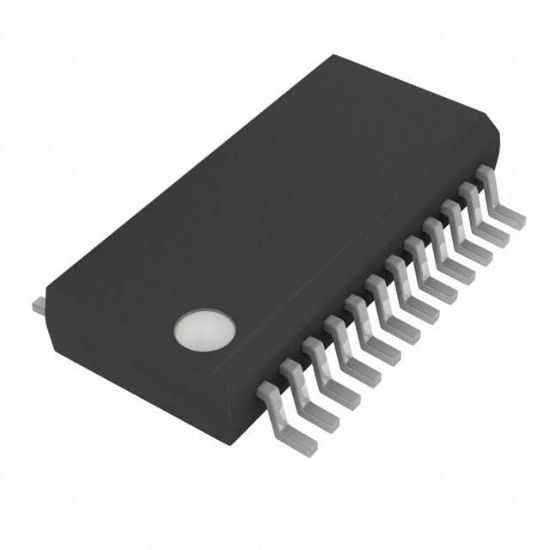

IC PLL CLOCK MULTIPLIER 24-QSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CDCF5801DBQG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CDCF5801DBQG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CDCF5801	CDCF5801DBQG4	TI	24	0	Low Jitter PLL Based Multiplier/Divider with programmable delay lines down to sub 10ps

Voltage - Supply	3V ~ 3.6V
Input	HSTL, LVPECL, LVTTL
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Supplier Device Package	24-SSOP
Number of Circuits	1
Output	HSTL, LVDS, LVPECL, LVTTL, SSTL
Package	Tube
Ratio - Input:Output	1:1
Differential - Input:Output	No/Yes
Type	PLL Multiplier/Divider
Divider/Multiplier	Yes/Yes
Frequency - Max	280MHz
PLL	Yes
RoHS	RoHS
