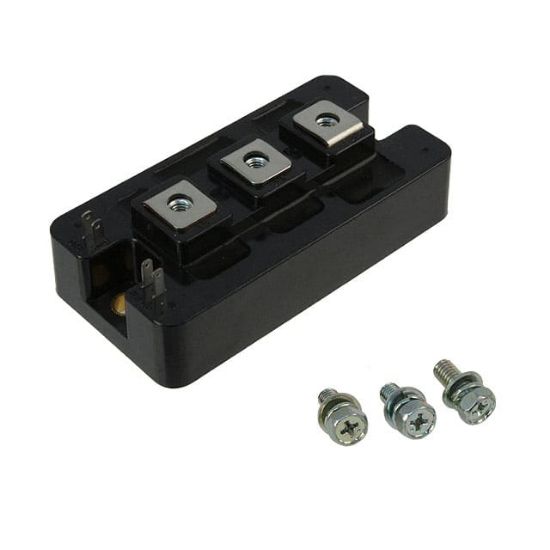

CM300DY-12H

IGBT MOD 600V 300A 1100W

1 review(s) | Add your review

Availability: In stock

Manufacturer: Powerex Inc.

SKU: CM300DY-12H

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CM300DY-12H Description

Operating Temperature	-40°C ~ 150°C (TJ)
Input	Standard
Input Capacitance (Cies) @ Vce	30 nF @ 10 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	300 A
Supplier Device Package	Module
NTC Thermistor	No
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	1100 W
IGBT Type	-
Package	Bulk
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 300A
Configuration	Half Bridge
RoHS	RoHS
Current - Collector Cutoff (Max)	1 mA
