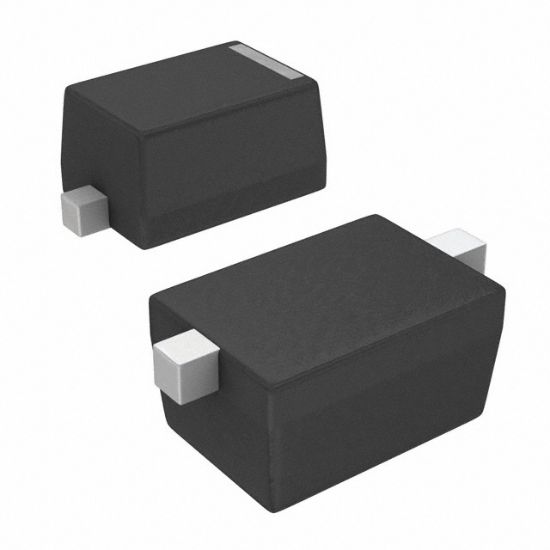

CMOD2004 TR13 PBFREE

DIODE GEN PURP 240V 200MA SOD523

1 review(s) | Add your review

Availability: In stock

Manufacturer: Central Semiconductor Corp

SKU: CMOD2004 TR13 PBFREE

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMOD2004 TR13 PBFREE Description

Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SOD-523
Diode Type	Standard
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	1 V @ 100 mA
Current - Reverse Leakage @ Vr	100 nA @ 240 V
Reverse Recovery Time (trr)	50 ns
Voltage - DC Reverse (Vr) (Max)	240 V
Current - Average Rectified (Io)	200mA
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
