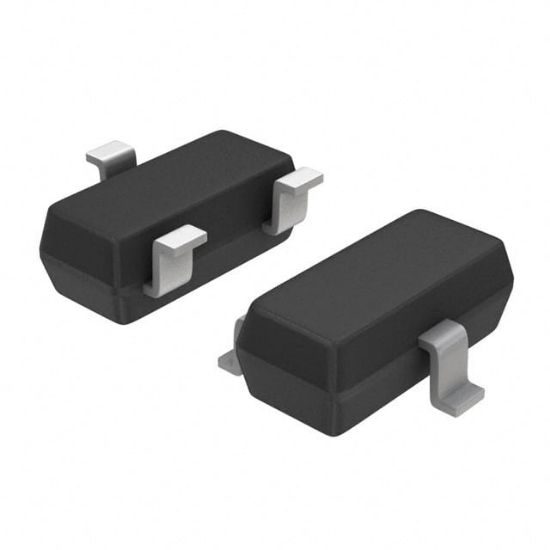

CPH3362-TL-W

MOSFET P-CH 100V 700MA 3CPH

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: CPH3362-TL-W

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CPH3362-TL-W Description

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	700mA (Ta)
Rds On (Max) @ Id, Vgs	1.7Ohm @ 700mA, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	1W (Ta)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	3.7 nC @ 10 V
Supplier Device Package	3-CPH
Input Capacitance (Ciss) (Max) @ Vds	142 pF @ 20 V
RoHS	RoHS
