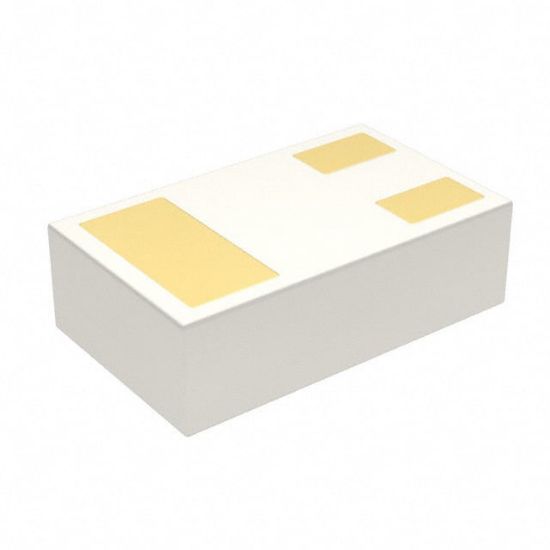

CSD13383F4

MOSFET N-CH 12V 2.9A 3PICOSTAR

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD13383F4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD13383F4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GC	CSD13383F4	TI	3	0	CSD13383F4 12-V N-Channel FemtoFET? MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.9A (Ta)
Rds On (Max) @ Id, Vgs	44mOhm @ 500mA, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	12 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	1.25V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	2.6 nC @ 4.5 V
Supplier Device Package	3-PICOSTAR
Input Capacitance (Ciss) (Max) @ Vds	291 pF @ 6 V
RoHS	RoHS
