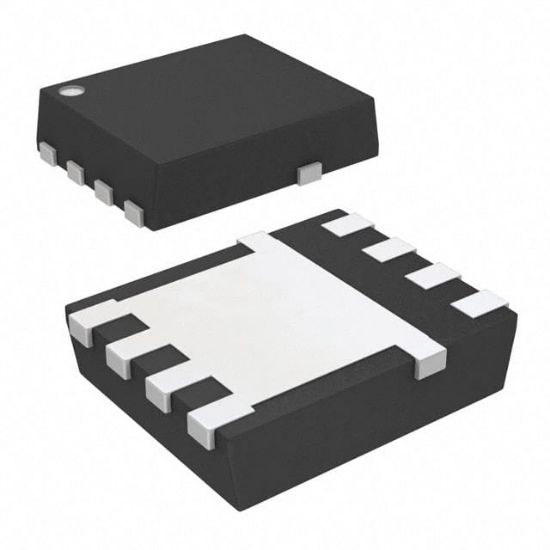

CSD16322Q5

MOSFET N-CH 25V 21A/97A 8VSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD16322Q5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD16322Q5 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CSD16322	CSD16322Q5	TI	8	0	N-Channel NexFET™ Power MOSFETs

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 97A (Tc)
Rds On (Max) @ Id, Vgs	5mOhm @ 20A, 8V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	3.1W (Ta)
Drain to Source Voltage (Vdss)	25 V
Vgs (Max)	+10V, -8V
Vgs(th) (Max) @ Id	1.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	9.7 nC @ 4.5 V
Supplier Device Package	8-VSON-CLIP (5x6)
Input Capacitance (Ciss) (Max) @ Vds	1365 pF @ 12.5 V
RoHS	RoHS
