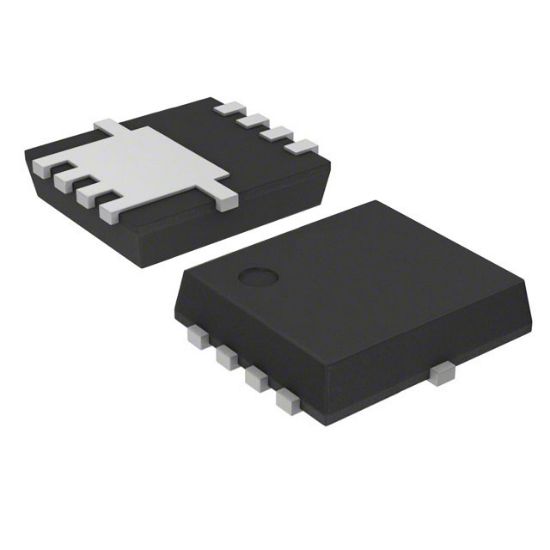

CSD17579Q3AT

MOSFET N-CH 30V 20A 8VSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD17579Q3AT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD17579Q3AT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
17579	CSD17579Q3AT	TI	8	0	CSD17579Q3A 30 V N-Channel NexFET? Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Rds On (Max) @ Id, Vgs	10.2mOhm @ 8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	3.2W (Ta), 29W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	1.9V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V
Supplier Device Package	8-VSONP (3x3.3)
Input Capacitance (Ciss) (Max) @ Vds	998 pF @ 15 V
RoHS	RoHS
