CSD75207W15

MOSFET 2P-CH 3.9A 9DSBGA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CSD75207W15

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CSD75207W15 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
75207	CSD75207W15	TI	9	0	Dual P-Channel NexFET? Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount

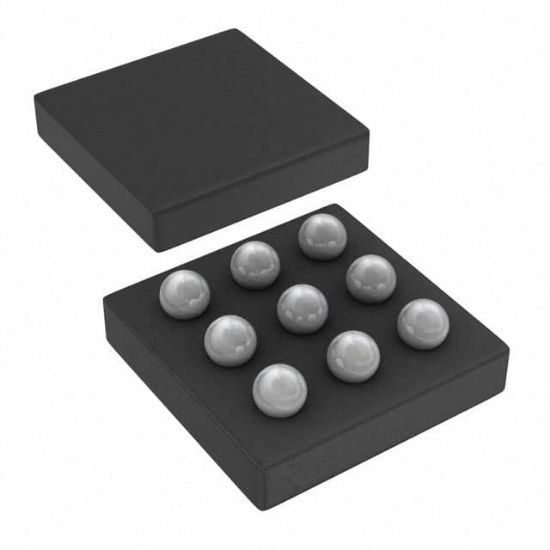

Supplier Device Package	9-DSBGA
Current - Continuous Drain (Id) @ 25°C	3.9A
Rds On (Max) @ Id, Vgs	162mOhm @ 1A, 1.8V
FET Type	2 P-Channel (Dual) Common Source
Power - Max	700mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	-
Vgs(th) (Max) @ Id	1.1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	3.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	595pF @ 10V
RoHS	RoHS
