CY74FCT543ATSOC

IC TXRX NON-INVERT 5.25V 24SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CY74FCT543ATSOC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CY74FCT543ATSOC Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
FCT543A	CY74FCT543ATSOC	TI	24	0	Octal Registered Transceivers with 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	32mA, 64mA
RoHS	RoHS
Logic Type	Transceiver, Non-Inverting
Voltage - Supply	4.75V ~ 5.25V
Number of Elements	1

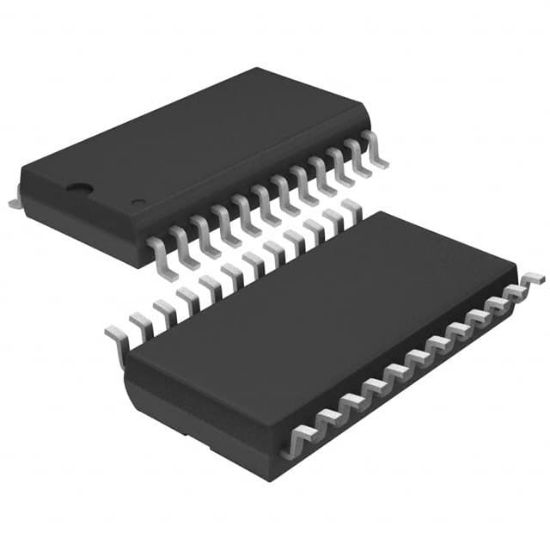

Supplier Device Package	24-SOIC
Package	Tube
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
