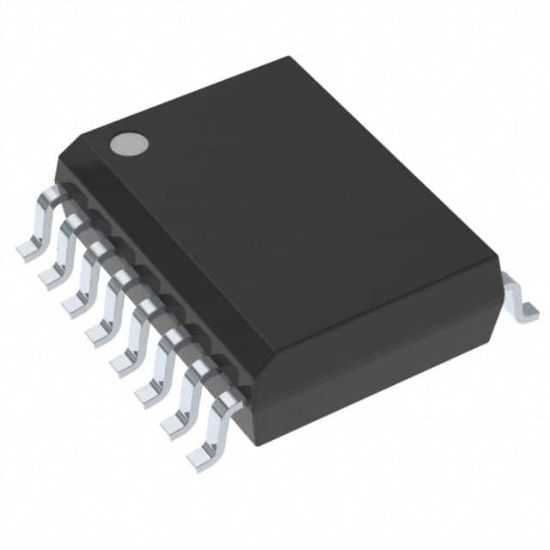

DAC7614UB

IC DAC 12BIT V-OUT 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: DAC7614UB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DAC7614UB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
DAC7614U B	DAC7614UB	TI	16	0	Quad, Serial Input, 12-Bit, Voltage Output Digital-To-Analog Converter

Operating Temperature	-40°C ~ 85°C
Data Interface	SPI
Differential Output	No
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
Number of Bits	12
Package	Tube
Architecture	R-2R
Number of D/A Converters	4
Voltage - Supply, Analog	±5V
Settling Time	10μs
RoHS	RoHS
Voltage - Supply, Digital	5V
Output Type	Voltage - Buffered
