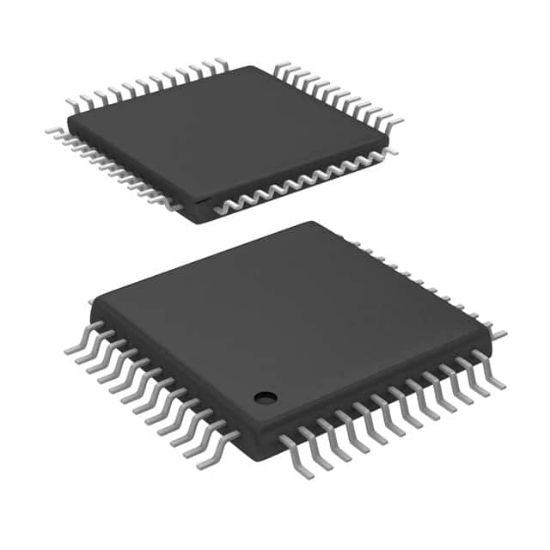

DAC8544IPFB

IC DAC 16BIT V-OUT 48TQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: DAC8544IPFB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DAC8544IPFB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
DAC8544I	DAC8544IPFB	TI	48	0	Quad 16-Bit Quad Rail-to-Rail Voltage output Parallel Interface Digital-to-Analog Converter

Operating Temperature	-40°C ~ 105°C
Data Interface	Parallel
Differential Output	No
INL/DNL (LSB)	-, ±0.25
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	48-TQFP (7x7)
Number of Bits	16
Package	Tray
Architecture	String DAC
Number of D/A Converters	4
Voltage - Supply, Analog	2.7V ~ 5.5V
Settling Time	10μs
RoHS	RoHS
Voltage - Supply, Digital	2.7V ~ 5.5V
Output Type	Voltage - Buffered
