DAP202U

DIODE ARRAY GP 80V 100MA SC70-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: DAP202U

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DAP202U Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
N8	DAP202U	Ons	SOT-323	3	Dual, Sw, 80V, 100mA, 200mW, <10ns
NB	DAP202U		SOT–323	3	COMMON ANODE DUAL SWITCHING DIODE
NBx	DAP202U		SOT-323	0	COMMON ANODE DUAL SWITCHING DIODE
P	DAP202U		UMD3	3	Dual, Common Anode Switching diode

Current - Average Rectified (Io) (per Diode)	100mA (DC)
Mounting Type	Surface Mount

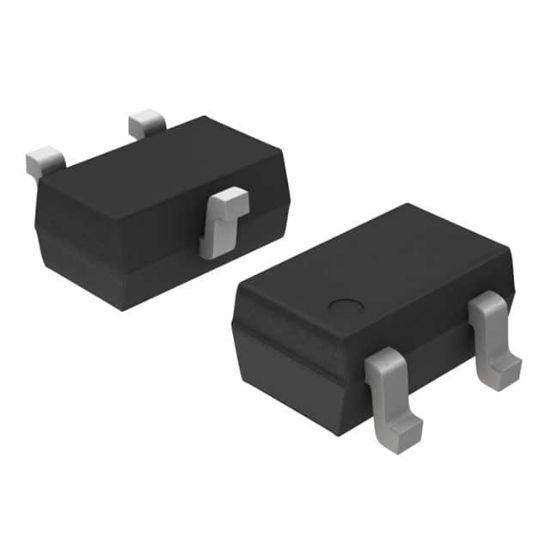

Supplier Device Package	SC-70-3 (SOT323)
Diode Type	Standard
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Bulk
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 100 mA
Current - Reverse Leakage @ Vr	100 nA @ 70 V
Reverse Recovery Time (trr)	10 ns
Voltage - DC Reverse (Vr) (Max)	80 V
Diode Configuration	1 Pair Common Anode
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
