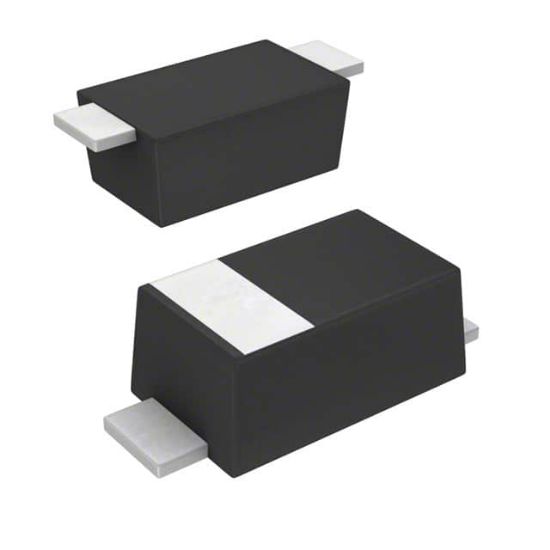

DB2W40900L

DIODE SCHOTTKY 40V 3A MINI2

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: DB2W40900L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DB2W40900L Description

Capacitance @ Vr, F	70pF @ 10V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	Mini2-F3-B
Diode Type	Schottky
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	550 mV @ 3 A
Current - Reverse Leakage @ Vr	200 μA @ 40 V
Reverse Recovery Time (trr)	25 ns
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	3A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
