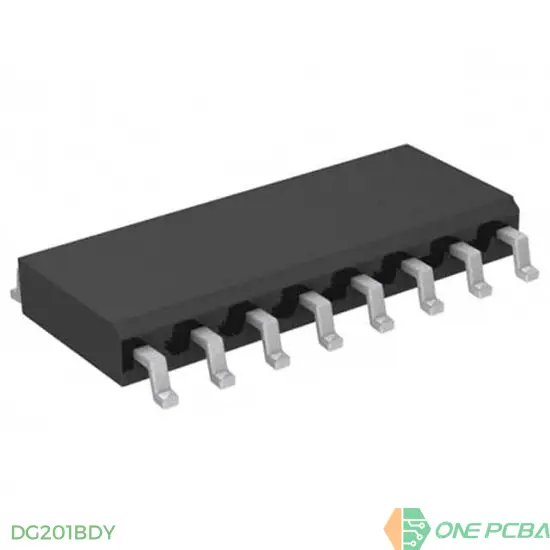

DG201BDY

IC SWITCH QUAD SPST 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: DG201BDY

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DG201BDY Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF, 5pF
On-State Resistance (Max)	85Ohm
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
Switch Circuit	SPST - NC
Voltage - Supply, Dual (V±)	±4.5V ~ 22V
Number of Circuits	4
Package	Bulk
Charge Injection	1pC
Switch Time (Ton, Toff) (Max)	300ns, 200ns
Voltage - Supply, Single (V+)	4.5V ~ 25V
Crosstalk	-95dB @ 100kHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	2Ohm
-3db Bandwidth	-
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	500pA
