DTB543EMT2L

TRANS PREBIAS PNP 150MW VMT3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: DTB543EMT2L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DTB543EMT2L Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
X13	DTB543EMT2L		VMT3	0	-500mA / -12V Low VCE (sat) Digital transistor (with built-in resistors)

Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 100mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	500 mA

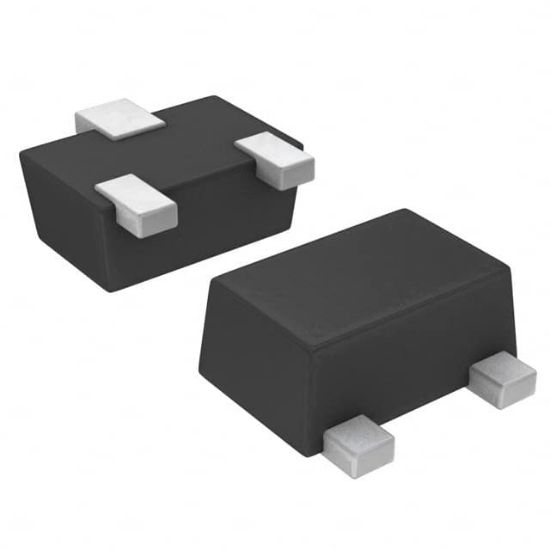

Supplier Device Package	VMT3
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	12 V
Power - Max	150 mW
Package	Tape & Reel (TR)
Resistor - Emitter Base (R2)	4.7 kOhms
Resistor - Base (R1)	4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	115 @ 100mA, 2V
Frequency - Transition	260 MHz
RoHS	RoHS
Transistor Type	PNP - Pre-Biased
