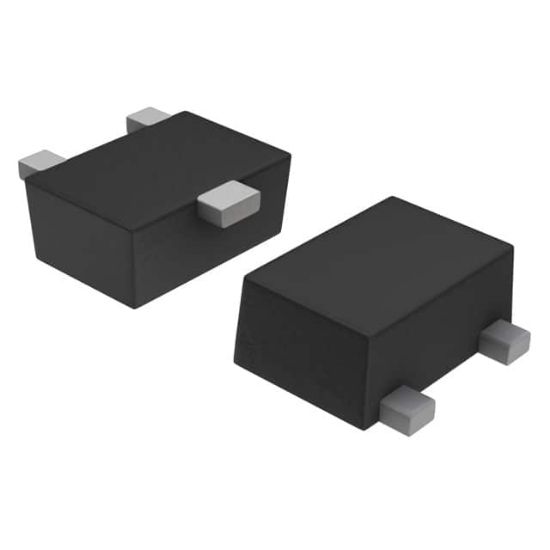

DTC124EM3T5G

TRANS PREBIAS NPN 50V SOT723

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: DTC124EM3T5G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DTC124EM3T5G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
8Bx	DTC124EM3T5G		SOT-723	0	NPN Bipolar Digital Transistor (BRT)
8B	DTC124EM3T5G	ON	SOT?723	3	NPN Bipolar Digital Transistor (BRT)

Vce Saturation (Max) @ Ib, Ic	250mV @ 300μA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	SOT-723
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	260 mW
Package	Tape & Reel (TR),Bulk
Resistor - Emitter Base (R2)	22 kOhms
Resistor - Base (R1)	22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 10V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN - Pre-Biased
