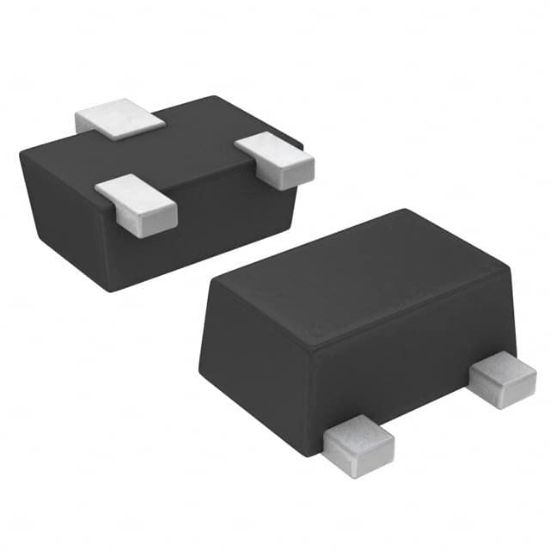

DTD743ZMT2L

TRANS PREBIAS NPN 150MW VMT3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: DTD743ZMT2L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DTD743ZMT2L Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
P23	DTD743ZMT2L		VMT3	0	200mA / 30V Low VCE (sat) Digital transistor (with built-in resistors)

Vce Saturation (Max) @ Ib, Ic	300mV @ 2.5mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	200 mA
Supplier Device Package	VMT3
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	30 V
Power - Max	150 mW
Package	Tape & Reel (TR)
Resistor - Emitter Base (R2)	47 kOhms
Resistor - Base (R1)	4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	140 @ 100mA, 2V
Frequency - Transition	260 MHz
RoHS	RoHS
Transistor Type	NPN - Pre-Biased
