FDMB3900AN

MOSFET 2N-CH 25V 7A 8MLP MICRO

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMB3900AN

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMB3900AN Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3900	FDMB3900AN	Fairchild	MicroFET-8	8	25 V 双 N 沟道 Power Trench? MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount

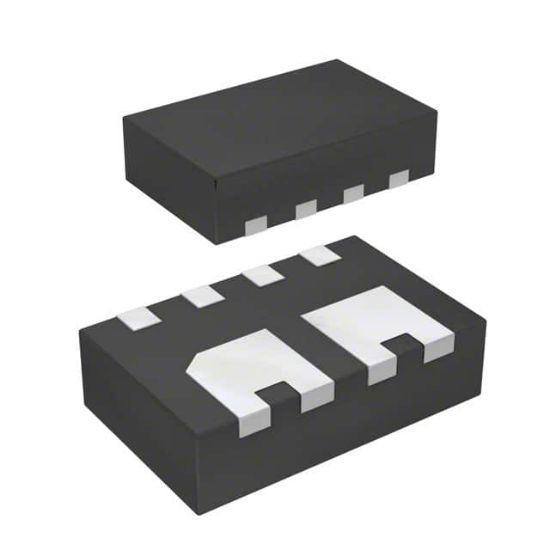

Supplier Device Package	8-MLP, MicroFET (3x1.9)
Current - Continuous Drain (Id) @ 25°C	7A
Rds On (Max) @ Id, Vgs	23mOhm @ 7A, 10V
FET Type	2 N-Channel (Dual)
Power - Max	800mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	25V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	890pF @ 13V
RoHS	RoHS
