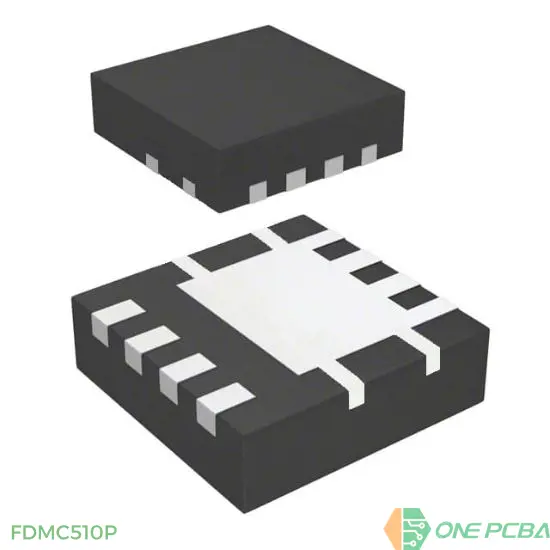

FDMC510P

MOSFET P-CH 20V 12A/18A 8MLP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMC510P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMC510P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
FDMC510P	FDMC510P	FAIRCHILD	MLP3.3x3.3	0	场效应管FET MOSFET-P沟道MOSFET P-Channel
FDMC510	FDMC510P	FAIRCHILD	MLP3.3x3.3	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 18A (Tc)
Rds On (Max) @ Id, Vgs	8mOhm @ 12A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.3W (Ta), 41W (Tc)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	116 nC @ 4.5 V
Supplier Device Package	8-MLP (3.3x3.3)
Input Capacitance (Ciss) (Max) @ Vds	7860 pF @ 10 V
RoHS	RoHS
