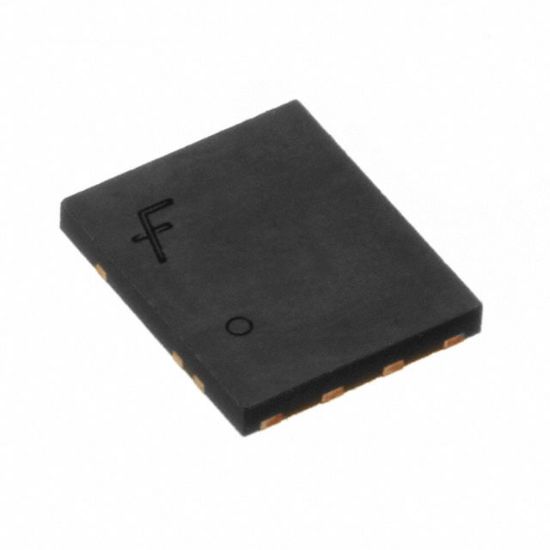

FDMD8680

MOSFET 2 N-CH 80V 66A 8-PQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMD8680

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMD8680 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	8-Power 5x6
Current - Continuous Drain (Id) @ 25°C	66A (Tc)
Rds On (Max) @ Id, Vgs	4.7mOhm @ 16A, 10V
FET Type	2 N-Channel (Dual)
Power - Max	39W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	80V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	73nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	5330pF @ 40V
RoHS	RoHS
