FDT86244

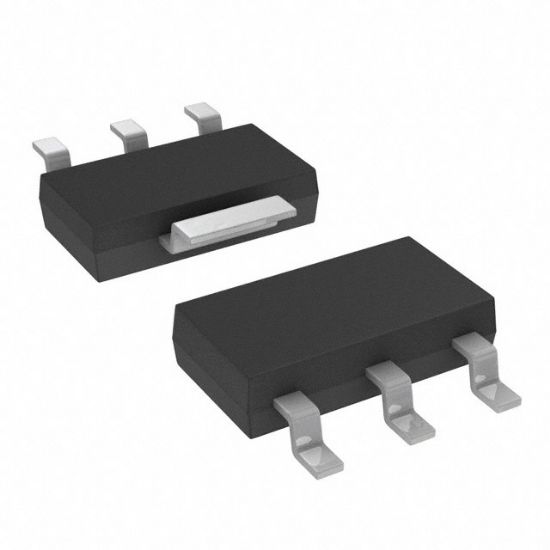

MOSFET N-CH 150V 2.8A SOT223-4

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDT86244

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDT86244 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
86244	FDT86244	Fairchild	SOT-223	3	150V N沟道Power Trench? MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.8A (Tc)
Rds On (Max) @ Id, Vgs	128mOhm @ 2.8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.2W (Ta)
Drain to Source Voltage (Vdss)	150 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 10 V
Supplier Device Package	SOT-223-4
Input Capacitance (Ciss) (Max) @ Vds	395 pF @ 75 V
RoHS	RoHS
