FFB3946

TRANS NPN/PNP 40V 0.2A SC70-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FFB3946

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FFB3946 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
.AB	FFB3946	FAIRCHILD	SC70-6	0	放大器
AB	FFB3946		SC70-6	6	NPN & PNP General Purpose Transistors

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	250mV @ 1mA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	200mA

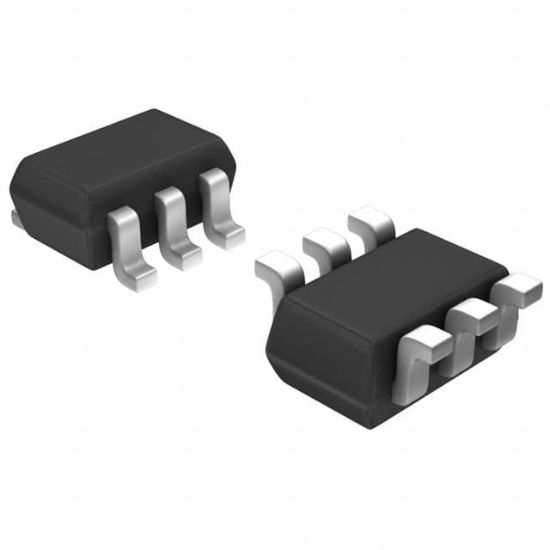

Supplier Device Package	SC-88 (SC-70-6)
Current - Collector Cutoff (Max)	50nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	40V
Power - Max	300mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Frequency - Transition	200MHz
RoHS	RoHS
Transistor Type	NPN, PNP
