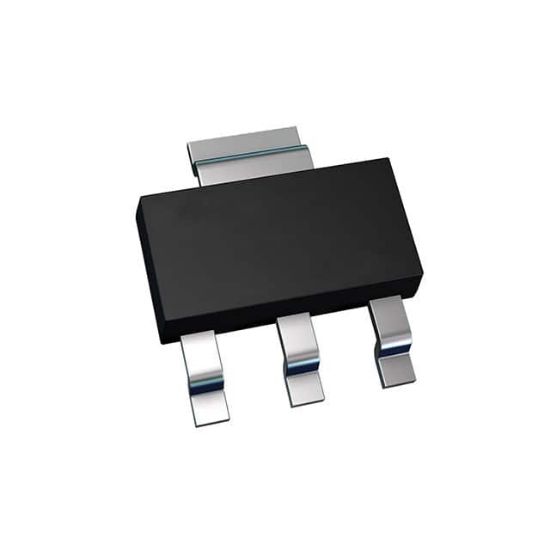

FZT560TC

TRANS PNP 500V 0.15A SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: FZT560TC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FZT560TC Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 10mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	150 mA
Supplier Device Package	SOT-223-3
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	500 V
Power - Max	2 W
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 50mA, 10V
Frequency - Transition	60MHz
RoHS	RoHS
Transistor Type	PNP
