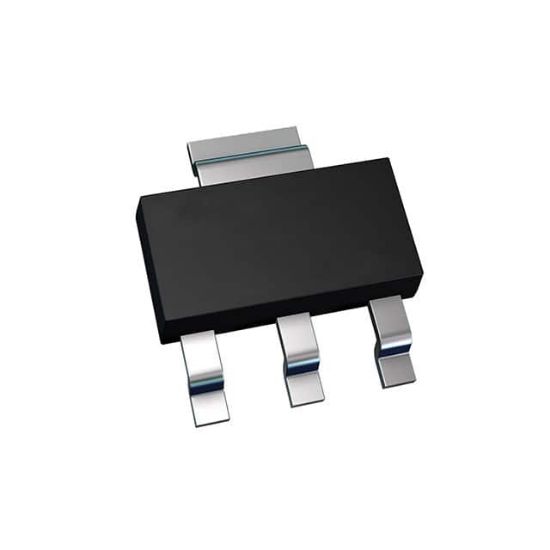

FZT694BTA

TRANS NPN 120V 1A SOT-223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: FZT694BTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FZT694BTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
FZT694	FZT694BTA	ZETEX	SOT-223	0	三极管Bipolar Junction Transistors(BJT) NPN

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 400mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A
Supplier Device Package	SOT-223-3
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	120 V
Power - Max	2 W
Package	Tape & Reel (TR),Cut Tape (CT)
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 400mA, 2V
Frequency - Transition	130MHz
RoHS	RoHS
Transistor Type	NPN
