HCPL0631

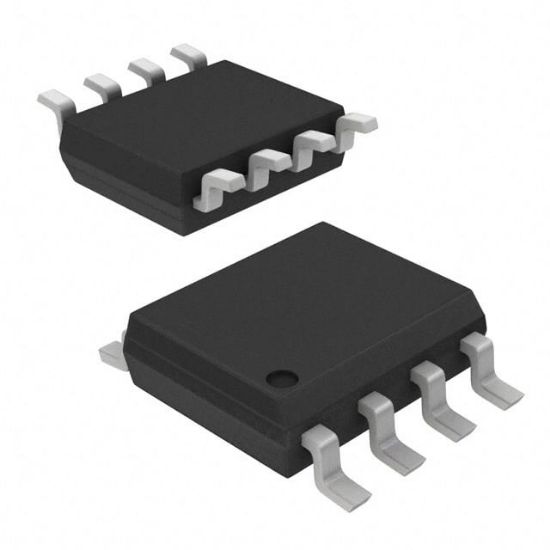

OPTOISO 3.75KV 2CH OPEN COLL 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: HCPL0631

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HCPL0631 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
631 xxx	HCPL0631	Agilent	SOIC8	8

Voltage - Supply	4.5V ~ 5.5V
Rise / Fall Time (Typ)	50ns, 12ns
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Data Rate	10Mbps
Supplier Device Package	8-SO Tall
Common Mode Transient Immunity (Min)	5kV/μs
Number of Channels	2
Package	Tube
Voltage - Forward (Vf) (Typ)	1.75V (Max)
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	2/0
Current - Output / Channel	50 mA
Input Type	DC
Operating Temperature	-40°C ~ 85°C
Current - DC Forward (If) (Max)	50mA
Voltage - Isolation	3750Vrms
RoHS	RoHS
Output Type	Open Collector, Schottky Clamped
