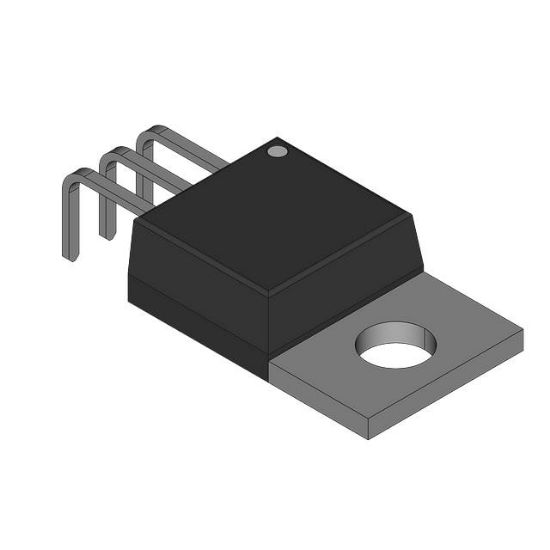

HGTP7N60B3D-6367347

IGBT, 14A, 600V, N-CHANNEL, TO-2

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: HGTP7N60B3D-6367347

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HGTP7N60B3D-6367347 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	14 A
Supplier Device Package	TO-220AB
Gate Charge	37 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	60 W
IGBT Type	-
Package	Bulk
Current - Collector Pulsed (Icm)	56 A
Td (on/off) @ 25°C	26ns/130ns
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 7A
Test Condition	480V, 7A, 50Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	37 ns
Switching Energy	160μJ (on), 120μJ (off)
RoHS	RoHS
