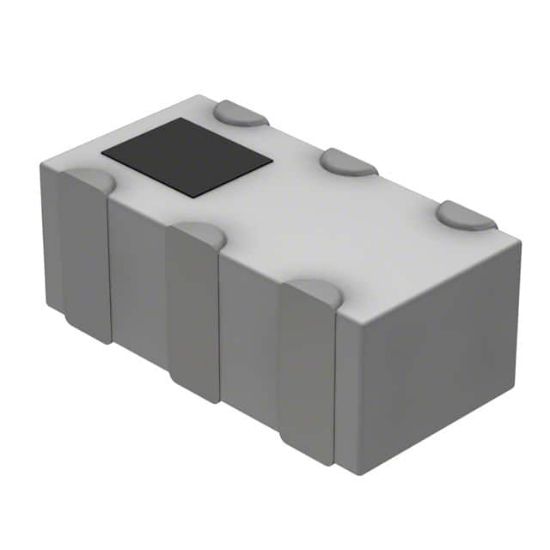

HHM1711D1

BALUN 2.4GHZ-2.5GHZ 50/100 0603

1 review(s) | Add your review

Availability: In stock

Manufacturer: TDK Corporation

SKU: HHM1711D1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HHM1711D1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3(0402)	HHM1711D1	TDK	603	0	晶振滤波Crystal Oscillator and Filter 滤波Filter 平衡-不平衡变压器Balun

Phase Difference	180° ±10°
Return Loss (Min)	10dB
RoHS	RoHS
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Impedance - Unbalanced/Balanced	50 / 100Ohm
Insertion Loss (Max)	1.2dB
Mounting Type	Surface Mount
Frequency Range	2.4GHz ~ 2.5GHz
