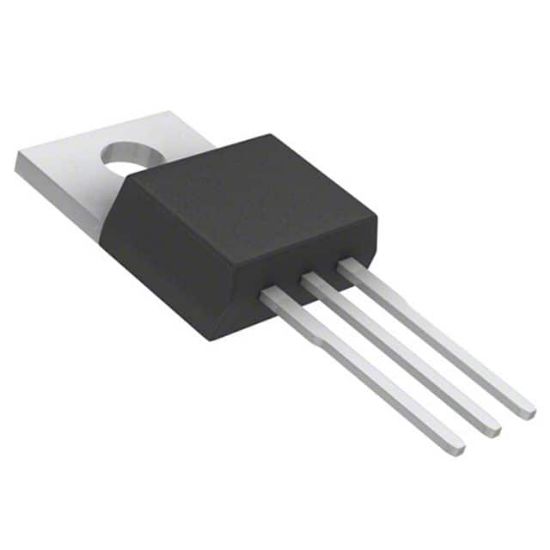

HUF75321P3

MOSFET N-CH 55V 35A TO220-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: HUF75321P3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HUF75321P3 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
75321P	HUF75321P3		TO-220AB	3	35A, 55V, 0.034 Ohm, N-Channel UltraFET Power MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Rds On (Max) @ Id, Vgs	34mOhm @ 35A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	93W (Tc)
Drain to Source Voltage (Vdss)	55 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	44 nC @ 20 V
Supplier Device Package	TO-220-3
Input Capacitance (Ciss) (Max) @ Vds	680 pF @ 25 V
RoHS	RoHS
