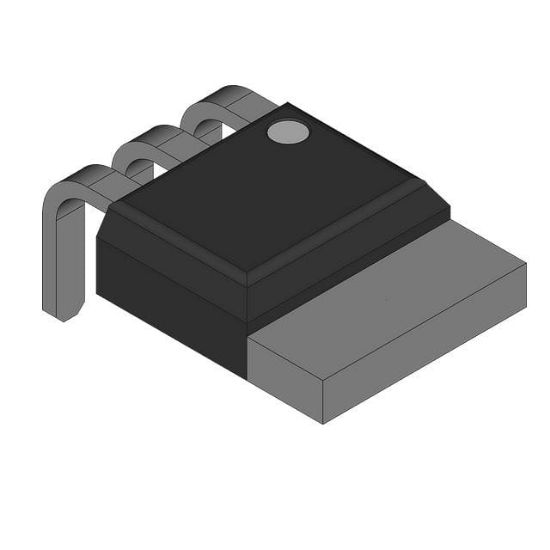

IKU15N60R

IGBT, 30A, 600V, N-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IKU15N60R

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IKU15N60R Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K15R60	IKU15N60R		PG-TO251-3	0	IGBT with integrated diode

Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	30 A
Supplier Device Package	PG-TO251-3
Gate Charge	90 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	250 W
IGBT Type	Trench
Package	Bulk
Current - Collector Pulsed (Icm)	45 A
Td (on/off) @ 25°C	16ns/183ns
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 15A
Test Condition	400V, 15A, 15Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	110 ns
Switching Energy	900μJ
RoHS	RoHS
