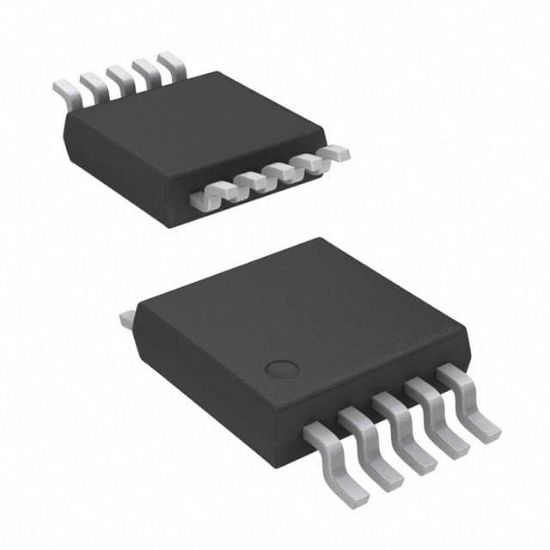

INA220BQDGSRQ1

IC MONITOR PWR/CUR BIDIR 10VSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: INA220BQDGSRQ1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

INA220BQDGSRQ1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
IPUQ	INA220BQDGSRQ1		MSOP-10	10	High- or Low-Side, Bidirectional Current Power Monitor with 2-Wire Interface

Operating Temperature	-40°C ~ 125°C
RoHS	RoHS
Function	Current Monitor
Sensing Method	High/Low-Side
Supplier Device Package	10-VSSOP
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Accuracy	±0.5%
Current - Output	10mA
Mounting Type	Surface Mount
Voltage - Input	0V ~ 26V
