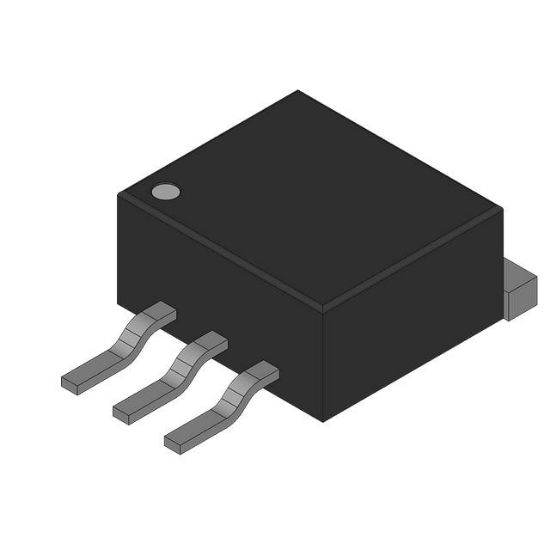

IPB04N03LAG

N-CHANNEL POWER MOSFET

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPB04N03LAG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPB04N03LAG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
04N03LA	IPB04N03LAG		TO-263	0	OptiMOS2 25V Power MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Rds On (Max) @ Id, Vgs	3.9mOhm @ 55A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Bulk
Power Dissipation (Max)	107W (Tc)
Drain to Source Voltage (Vdss)	25 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 60μA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 5 V
Supplier Device Package	PG-TO263-3-2
Input Capacitance (Ciss) (Max) @ Vds	3877 pF @ 15 V
RoHS	RoHS
