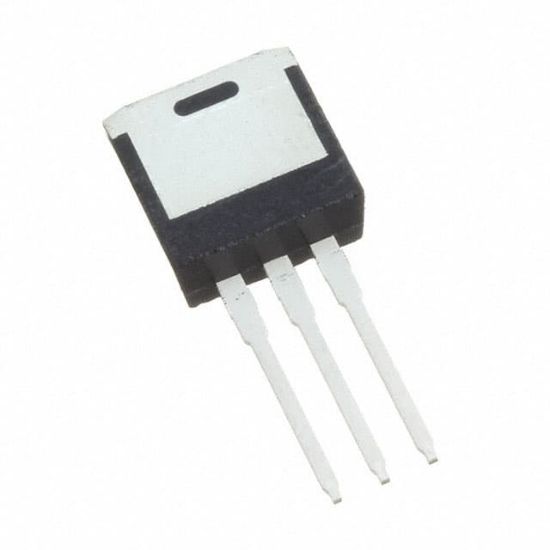

IPI50R140CP

MOSFET N-CH 550V 23A TO262-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPI50R140CP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPI50R140CP Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
5R140P	IPI50R140CP		TO-262	0	550V CoolMOS-CP N-channel MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Rds On (Max) @ Id, Vgs	140mOhm @ 14A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube,Tube
Power Dissipation (Max)	192W (Tc)
Drain to Source Voltage (Vdss)	550 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.5V @ 930μA
Gate Charge (Qg) (Max) @ Vgs	64 nC @ 10 V
Supplier Device Package	PG-TO262-3
Input Capacitance (Ciss) (Max) @ Vds	2540 pF @ 100 V
RoHS	RoHS
