IPP45N06S3L-13

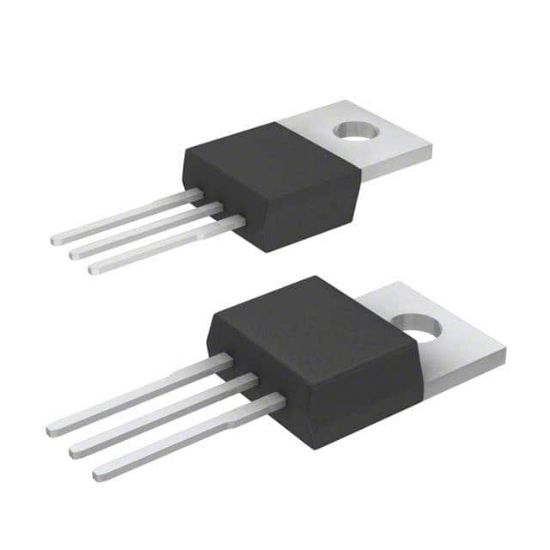

MOSFET N-CH 55V 45A TO220-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPP45N06S3L-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPP45N06S3L-13 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3N06L13	IPP45N06S3L-13		TO-220AB	0	OptiMOS�-T 55V Automotive N-channel MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Rds On (Max) @ Id, Vgs	13.4mOhm @ 26A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Package	Tube,Tube
Power Dissipation (Max)	65W (Tc)
Drain to Source Voltage (Vdss)	55 V
Vgs (Max)	±16V
Vgs(th) (Max) @ Id	2.2V @ 30μA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V
Supplier Device Package	PG-TO220-3-1
Input Capacitance (Ciss) (Max) @ Vds	3600 pF @ 25 V
RoHS	RoHS
