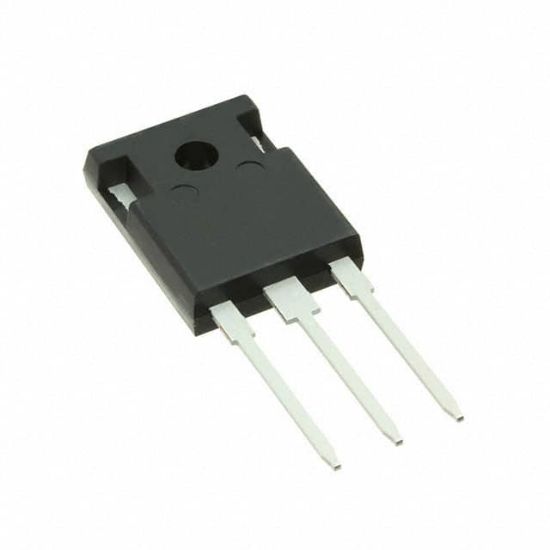

IPW60R250CP

MOSFET N-CH 650V 12A TO247-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPW60R250CP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPW60R250CP Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6R250P	IPW60R250CP	INFINEON	PG-TO247	3	CoolMOS? PowerTransistor

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Rds On (Max) @ Id, Vgs	250mOhm @ 7.8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube,Tube
Power Dissipation (Max)	104W (Tc)
Drain to Source Voltage (Vdss)	650 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.5V @ 440μA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V
Supplier Device Package	PG-TO247-3-1
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 100 V
RoHS	RoHS
