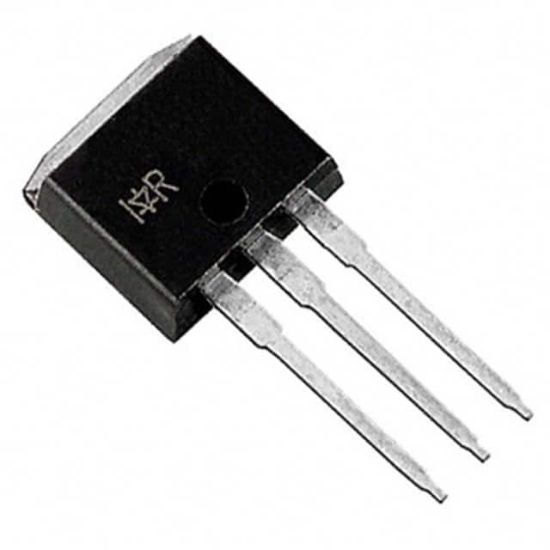

IRF1104L

MOSFET N-CH 40V 100A TO262

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF1104L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF1104L Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Rds On (Max) @ Id, Vgs	9mOhm @ 60A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	2.4W (Ta), 170W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	93 nC @ 10 V
Supplier Device Package	TO-262
Input Capacitance (Ciss) (Max) @ Vds	2900 pF @ 25 V
RoHS	RoHS
