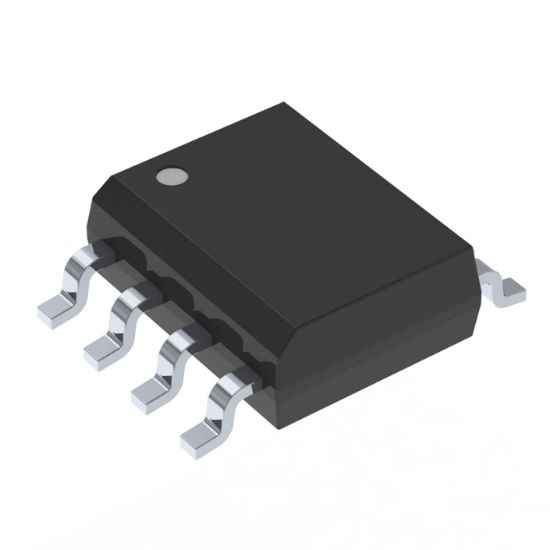

IRF7101TRPBF

MOSFET 2N-CH 20V 3.5A 8-SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF7101TRPBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF7101TRPBF Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F7101	IRF7101TRPBF		SO-8	0	20V Dual N-Channel HEXFET Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Current - Continuous Drain (Id) @ 25°C	3.5A
Rds On (Max) @ Id, Vgs	100mOhm @ 1.8A, 10V
FET Type	2 N-Channel (Dual)
Power - Max	2W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 15V
RoHS	RoHS
