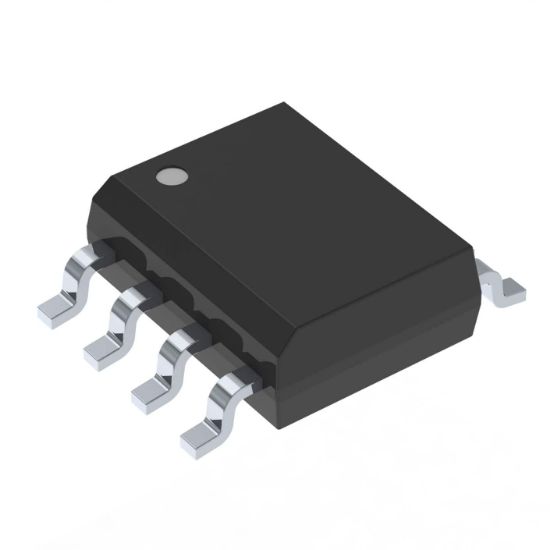

IRF7342D2PBF

MOSFET P-CH 55V 3.4A 8SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF7342D2PBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF7342D2PBF Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F7342D2	IRF7342D2PBF		SO-8	8	FETKY MOSFET & Schottky Diode

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Schottky Diode (Isolated)
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	3.4A (Ta)
Rds On (Max) @ Id, Vgs	105mOhm @ 3.4A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tube
Power Dissipation (Max)	2W (Ta)
Drain to Source Voltage (Vdss)	55 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V
Supplier Device Package	8-SO
Input Capacitance (Ciss) (Max) @ Vds	690 pF @ 25 V
RoHS	RoHS
