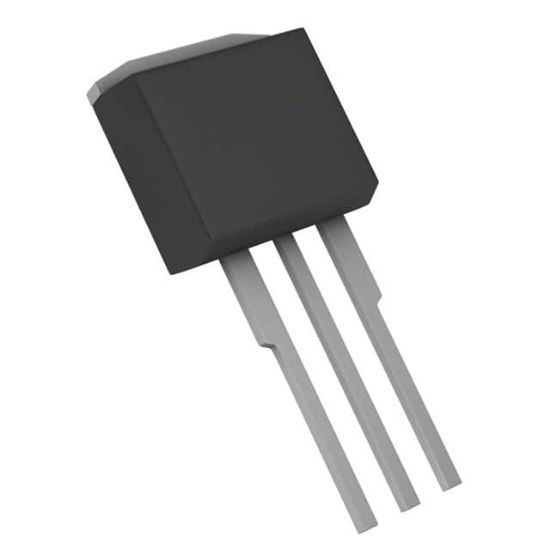

IRL1004L

MOSFET N-CH 40V 130A TO262

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRL1004L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRL1004L Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	130A (Tc)
Rds On (Max) @ Id, Vgs	6.5mOhm @ 78A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tube
Power Dissipation (Max)	3.8W (Ta), 200W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±16V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 4.5 V
Supplier Device Package	TO-262
Input Capacitance (Ciss) (Max) @ Vds	5330 pF @ 25 V
RoHS	RoHS
