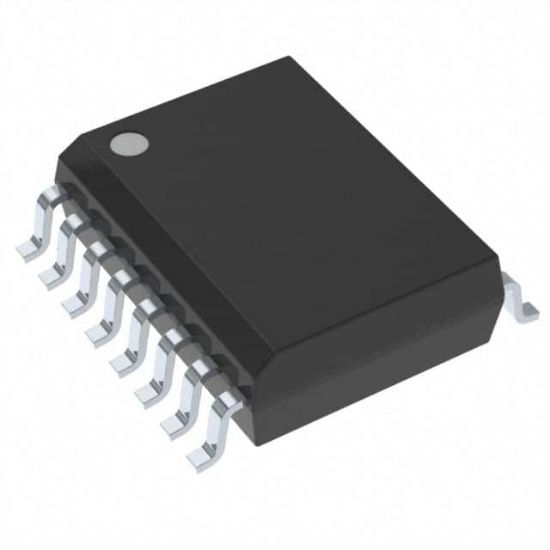

ISO15MDWR

ISO RS485/422 1MBPS 2.5KVRMS

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: ISO15MDWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ISO15MDWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ISO15M	ISO15MDWR	TI	16	0	Isolated 3.3-V Half-Duplex RS-485 Transceivers

Voltage - Supply	3.15V ~ 3.6V
Rise / Fall Time (Typ)	-
Common Mode Transient Immunity (Min)	25kV/μs
Propagation Delay tpLH / tpHL (Max)	-
Data Rate	1Mbps
Technology	Capacitive Coupling
Isolated Power	No
Number of Channels	3
Pulse Width Distortion (Max)	-
Package	Tape & Reel (TR)
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	2/1
Type	RS422, RS485
Supplier Device Package	16-SOIC
Operating Temperature	-55°C ~ 125°C
Voltage - Isolation	2500Vrms
RoHS	RoHS
