ISO7141FCCDBQR

DGTL ISO 2500VRMS 4CH GP 16SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: ISO7141FCCDBQR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ISO7141FCCDBQR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
7141FC	ISO7141FCCDBQR	TI	16	0	4242-VPK Small-Footprint and Low-Power 3/1 Quad Channel Digital Isolator with Fail-Safe Output Low

Voltage - Supply	2.7V ~ 5.5V
Rise / Fall Time (Typ)	2ns, 2ns
Common Mode Transient Immunity (Min)	25kV/μs
Propagation Delay tpLH / tpHL (Max)	35ns, 35ns
Data Rate	50Mbps
Technology	Capacitive Coupling
Isolated Power	No
Number of Channels	4
Pulse Width Distortion (Max)	3ns
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	3/1
Type	General Purpose

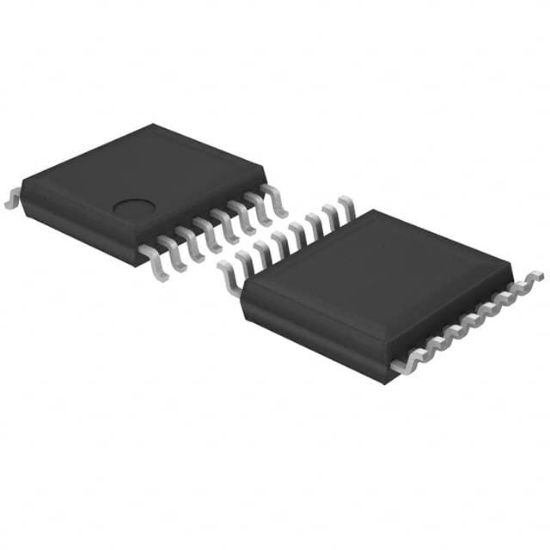

Supplier Device Package	16-SSOP
Operating Temperature	-40°C ~ 125°C
Voltage - Isolation	2500Vrms
RoHS	RoHS
